8.6 inch Projected Capacitive Touch Panel with USB controller for Automobile

8.6 inch Projective Capacitive Touch Screen with USB controller for Automobile

Basic specification:

Capacitive touch panel:

Capacitive Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.

Features:
1. Projected Capacitive touch screen
2. Customization
3. 3.5 inch to 70 inch(More large sizes products are developed now)
4. Multi touch point
5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
6. USB interface
7. Low MOQ

Applications:
Touch Kiosk, All in one
Digital Signage, Tablet pc
Advertising Machine
Medical device, Industrial pc panel
Multi-touch table, POS
Restaurant menu, ATM etc.

Competitive advantages:

1.18 years experience in designing and manufacturing touch panels.
2. A strong research team for both software and hardware and provide good pre-sales and after-sales service.
3. Except some standard products, customized touch panel from 3.5” to 65” now, the bigger size is developing and researching.
4. Cooperated with excellent customers and suppliers.
5. Long-term cooperation with excellent IC suppliers all over the world.
6. Good guarantee for product quality and lead time.
7. Touch panels for automobile,industry are in a leading position in China.

Delivery time:
Sample: 15-18days
Mass production:
1.Small sizes(smaller than 12.1 inch): 15-18 days.
2.Large sizes(larger than 12.1 inch):15-20days.

Drawing:

usb capacitive touch screen

projected capacitive touch screen

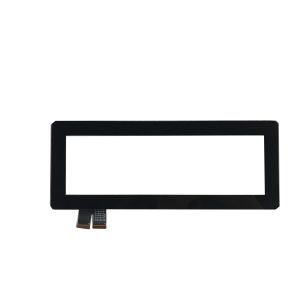

8.6 inch Projected Capacitive Touch Panel with USB controller for Automobile Images
